Qt Widgets to Qt Quick, An Application Journey Part 4

Completing the Software Architecture Transition

In the previous installment of this series, we started moving our sample Qt Widgets based application to a MVP architecture. Most of the code has been moved out from a widget to two proxies with well defined roles (one wrapping domain items, the other one intending to wrap business logic).

For this fourth and last part in our series, we'll complete the architecture transition and see how easy it will be to iterate on a new GUI at this point.

Moving the Remaining Business Logic in Its Corresponding Proxy

In the case of our application, the business logic is all driven by one slot and one method: onUpdateCurrentItemQuality() and updateQuality(). We just need to move them to PageProxy [commit 5eea88d].

The resulting implementation for the Window class gets really slim:

Window::Window(QWidget *parent)
    : QWidget(parent)
    , ui(new Ui::Window)
    // Note: the dependency on Repository is gone
    , m_pageProxy(new PageProxy(this))
{
    ui->setupUi(this);

    connect(ui->currentItemCombo, &QComboBox::currentIndexChanged,
            [=] {
                const auto id = ui->currentItemCombo->currentData().value();
                m_pageProxy->item()->setItemId(id); });

    connect(m_pageProxy->item(), &ItemProxy::sellInChanged,
            ui->sellInSpinBox, &QSpinBox::setValue);
    connect(ui->sellInSpinBox, &QSpinBox::valueChanged,
            m_pageProxy->item(), &ItemProxy::setSellIn);

    connect(m_pageProxy->item(), &ItemProxy::qualityChanged,
            ui->qualitySpinBox, &QSpinBox::setValue);
    connect(ui->qualitySpinBox, &QSpinBox::valueChanged,
            m_pageProxy->item(), &ItemProxy::setQuality);

    // This connect changed to trigger the slot on the PageProxy
    connect(ui->updateButton, &QPushButton::clicked,
            m_pageProxy, &PageProxy::updateItemQuality);

    ui->currentItemCombo->setModel(m_pageProxy->model());
    ui->tableView->setModel(m_pageProxy->model());
    ui->tableView->horizontalHeader()->resizeSections(QHeaderView::ResizeToContents);
}

The class is now basically down to a single constructor setting up the relationships. It can't give us a more declarative feel than that. Also, we moved the lower level dependencies (like Repository) to the proxy, so we improved the encapsulation and separation of concerns as planned.

Of course we mostly just needed to move code around, so PageProxy grew by around the same amount of code.

void PageProxy::updateItemQuality() {
    Item item = m_itemProxy->item();
    updateQuality(item);
    m_itemProxy->reloadData();
}

void PageProxy::updateQuality(Item &item) {
    // Long and complex logic to update item quality field and decrease sellIn by one
    // Followed by:
    m_repository->save(item);
}

At this point, since we did all those changes without introducing regressions thanks to our test, we could even evaluate simplifying the logic in updateQuality(). But this is a battle for another day.

Setup the Qt Quick GUI

We're almost there! We moved our whole application to the MVP pattern, it feels much better overall. Now it's time to add the Qt Quick GUI  [commit 7e4e72a] and [commit 66accfb].

For this we introduce a Window.qml file which we register in the com.gildedrose module:

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts

import com.gildedrose

ApplicationWindow {
    visible: true
    title: "Gilded Rose (QtQuick)"

    PageProxy {
        id: pageProxy
        currentItem.itemId: currentItemCombo.currentValue
    }

    ColumnLayout {
        anchors.fill: parent

        GridLayout {
            Layout.fillWidth: true
            columns: 2

            Label { text: "Current item" }
            ComboBox {
                id: currentItemCombo
                model: pageProxy.model
                textRole: "display"
                valueRole: "user"
            }

            Label { text: "Quality" }
            SpinBox {
                id: qualitySpinBox
                value: pageProxy.currentItem.quality
                // Simulating bidirectional bindings
                Binding { pageProxy.currentItem.quality: qualitySpinBox.value }
            }

            Label { text: "Remaining days" }
            SpinBox {
                id: sellInSpinBox
                value: pageProxy.currentItem.sellIn
                // Simulating bidirectional bindings
                Binding { pageProxy.currentItem.sellIn: sellInSpinBox.value }
            }
        }

        Button {
            id: updateButton
            Layout.fillWidth: true
            text: "Update item quality"
            onClicked: pageProxy.updateItemQuality()
        }

        Rectangle {
            Layout.fillWidth: true
            height: 1
            color: "lightGray"
        }

        HorizontalHeaderView { ... }
        TableView {
            id: tableView
            Layout.fillWidth: true
            Layout.fillHeight: true
            columnSpacing: 1
            rowSpacing: 1
            model: pageProxy.model
            delegate: TableViewDelegate {
                padding: 5
            }
        }
    }
}

Some code has been elided for brevity reasons. One thing you might notice is that the integration between this Qt Quick based window and the PageProxy is looking very similar to the one with our Qt Widgets based Window.

Then in the main function, we replace the code creating our old Window instance with the following code:

QQmlApplicationEngine engine;
engine.loadFromModule("com.gildedrose", "Window");

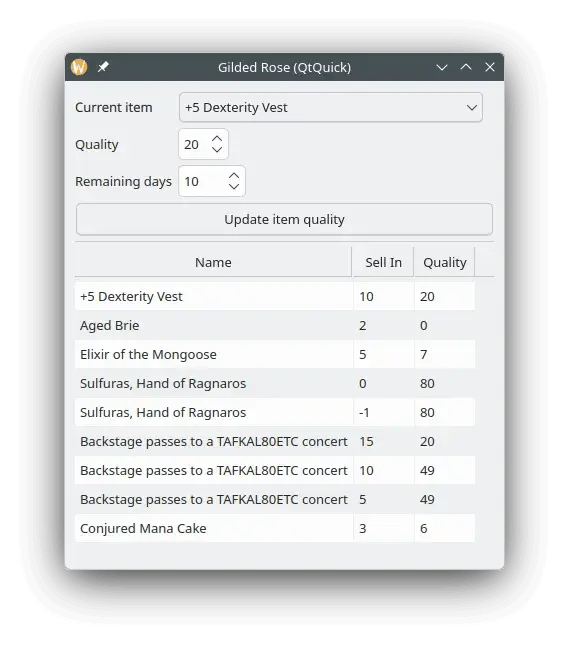

And then we switched to the new Qt Quick based GUI.

What Now?

We finally completed our architecture transition toward MVP and even slapped a new QtQuick GUI on top. At this point we have both the QtWidgets and QtQuick GUIs fully functional. We could have both running in parallel, or use conditional compilation to have one or the other. This is all the freedom we have to drive the transition at the pace we need for our users.

We might want to do something with our test now. There would be three options:

1. Drop it altogether, to be considered later if it doesn't bring anymore value (e.g. because we accumulated proper unit tests over time).

2. Keep it as is, which might not be practical middle to long term if the Qt Widgets GUI is decommissioned completely.

3. Modify it to work directly on the PageProxy rather than going through the GUI (maybe with a much simpler GUI only test next to it with a stubbed proxy).

Out of those three, the last option definitely has our preference as it'll interfere with GUI transitions the least. Of course this doesn't prevent dropping it later if it gets obsoleted.

Conclusion

Hopefully this series will have convinced you that our approach, although requiring discipline, is a valid one to move an application from Qt Widgets to Qt Quick.

Let's unwrap the important points of our approach:

1. Write simple wide coverage tests to act as non-regression tests during the transition.

2. Get the missing QAbstractItemModel subclasses to emerge, get rid of the QListWidget, QTableWidget and QTreeWidget to favor their view counterparts.

3. Introduce QObject based proxy classes for your domain objects.

4. Introduce QObject based proxy classes to receive business rules trapped in your QWidget subclasses.

5. Move all the remaining business logic in the proxies.

6. Develop the new Qt Quick based GUI on top of the introduced proxies.

7. Remove the Qt Widgets based GUI.

As a parting thought, we'll also point out that there is value in doing the transition to the MVP pattern even if you plan to stick with Qt Widgets. Nothing forces you to execute the steps 6 and 7 above. Even if you don't, going through the other steps will lead you to a better architecture overall with an improved separation of concerns and better testability throughout the application.
